Description

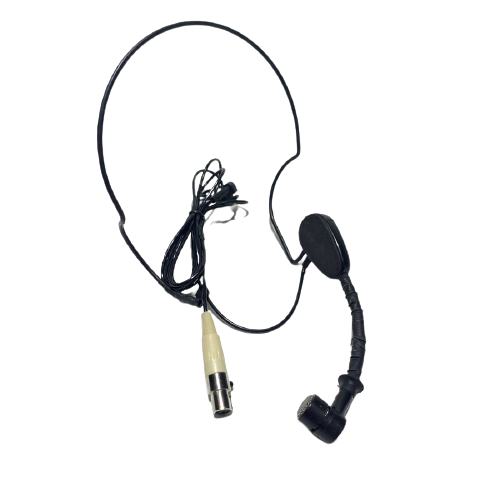

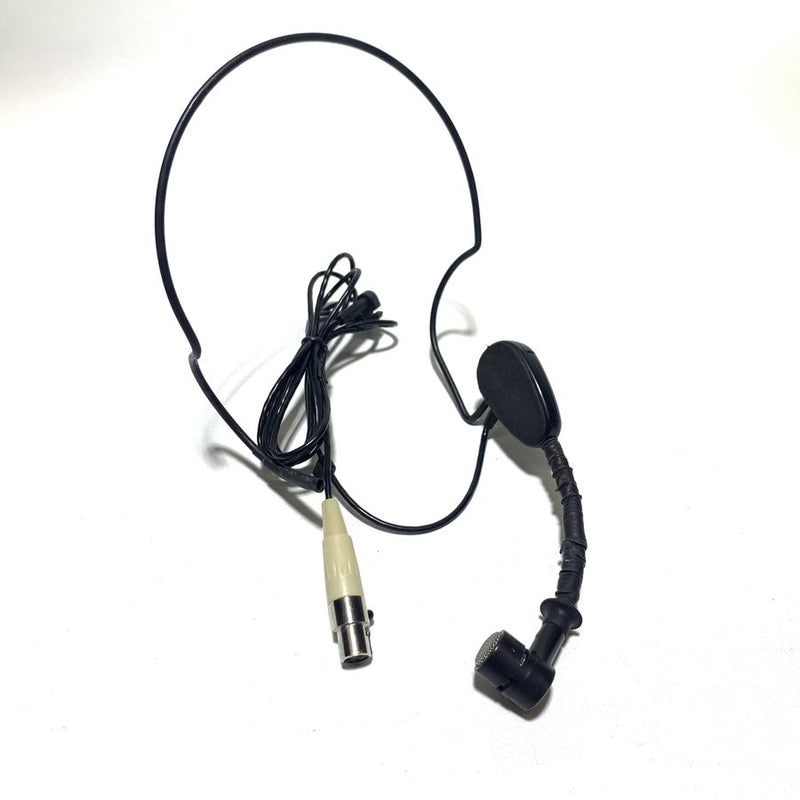

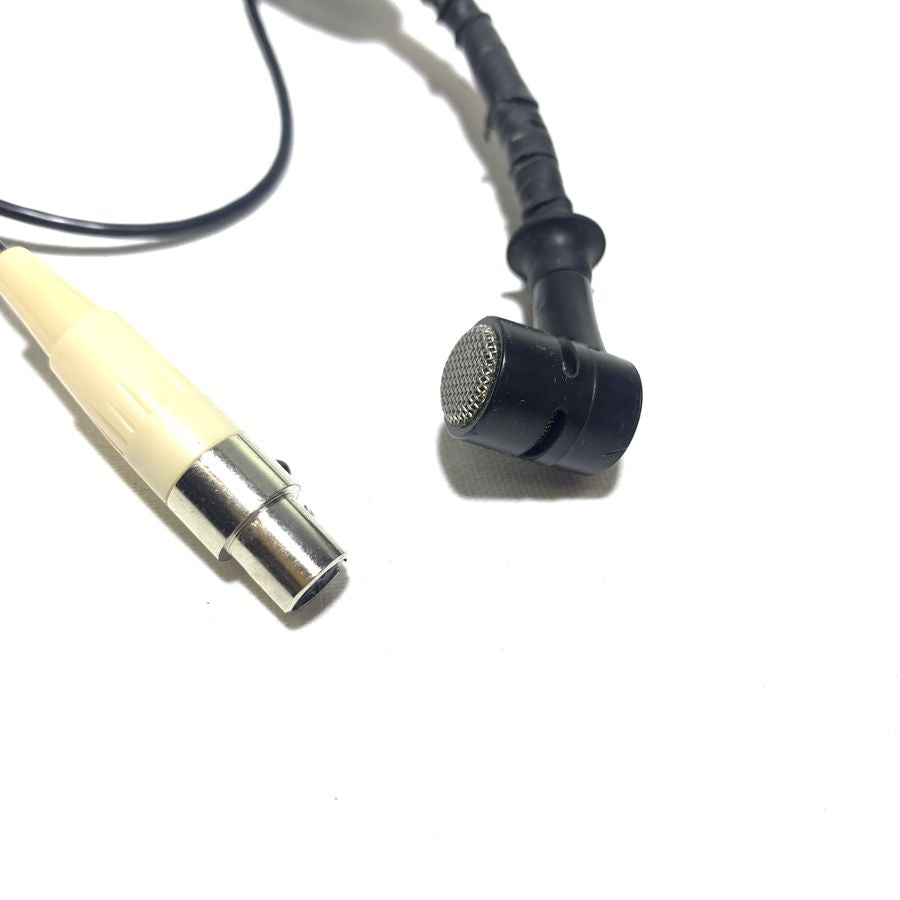

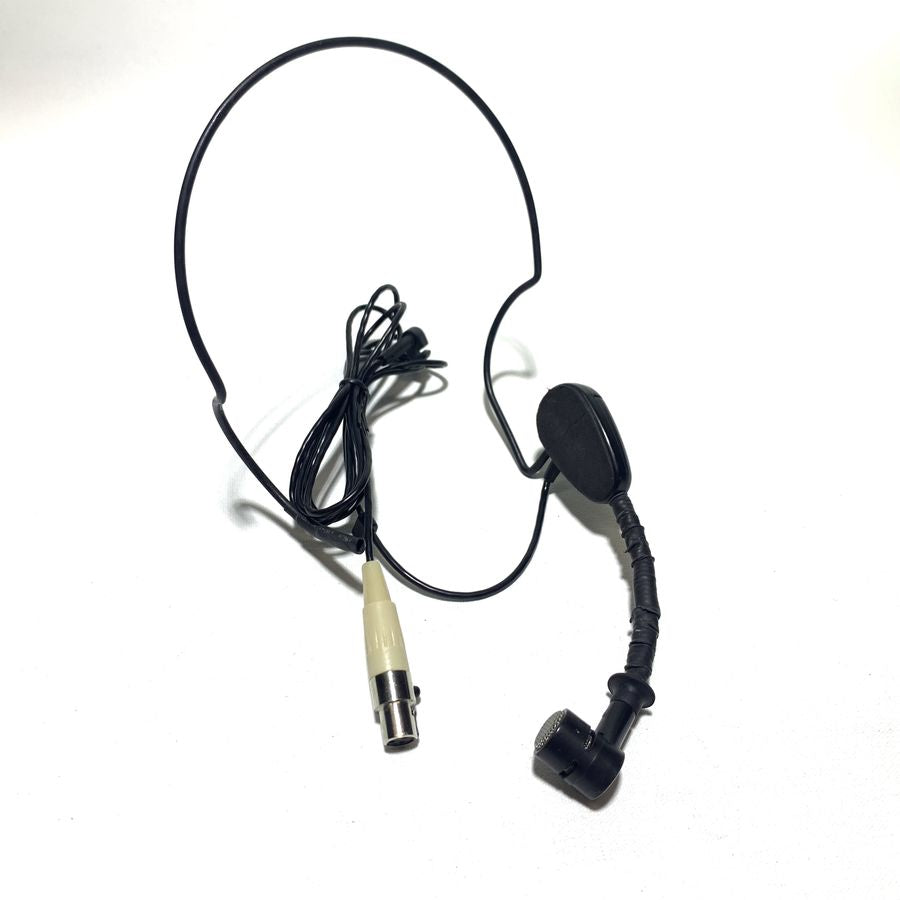

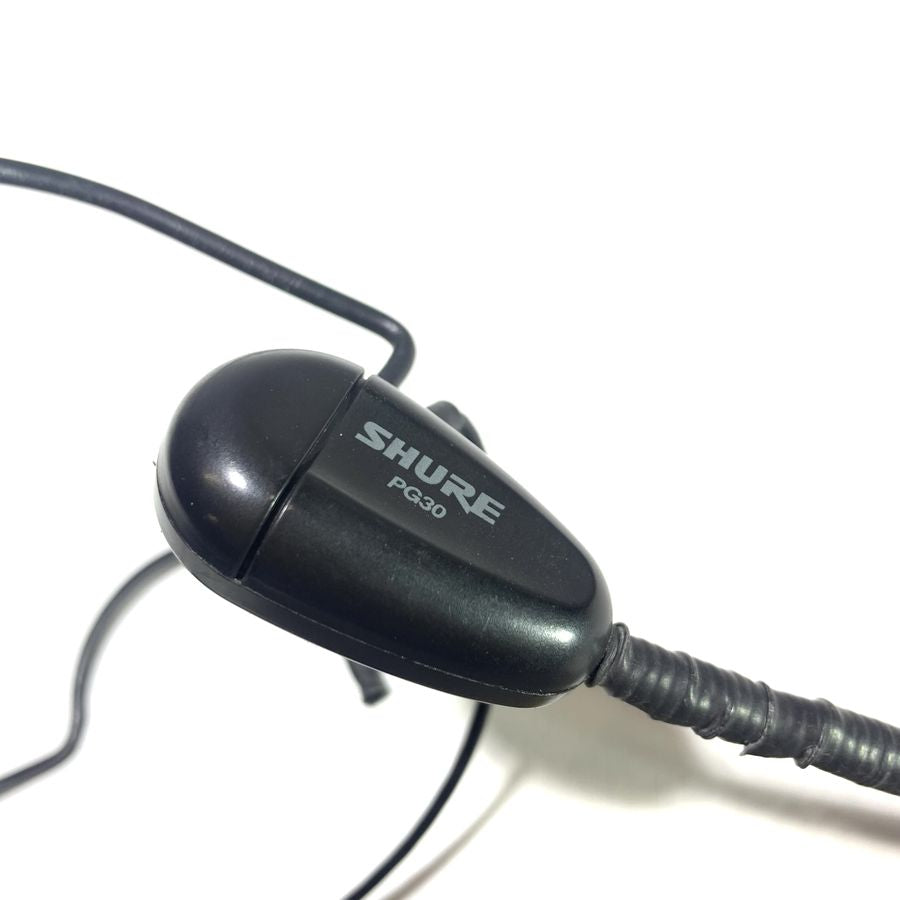

The Shure PG30-TQG is a miniature cardioid headset microphone with a TA3-Female connector, compatible with Shure wireless body pack transmitters. The condenser element features a cardioid polar pattern and is effective in minimizing off-axis noise and audio. The PG30 features a pivoting boom for easy adjustment. The microphone is ideal for various speech applications.
- Cardioid polar pattern
- Adjustable boom for easy positioning
- Comfortable form fitting headband
| Transducer | Electret Condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 60Hz to 18kHz |
| Dynamic Range (Typical) | 92dB |
| Signal-to-Noise Ratio | 61dB, 1kHz @ 1 Pa |
| Maximum Input Sound Level | 125dB |
| Power Requirements | +5VDC, 10V max (pin 2 to pin 1) |
| Output Impedance | 12k ohms @1kHz |
| Output Connectors | Mini TA3-Female |
| Pad | No |
| Low Frequency Roll-Off | No |
| Dimensions | Cable Length: 1.27m (50") |
| Weight | 51.6 g (1.82 oz) |
| Box Dimensions (LxWxH) | 7.6 x 6.3 x 3.2" |
